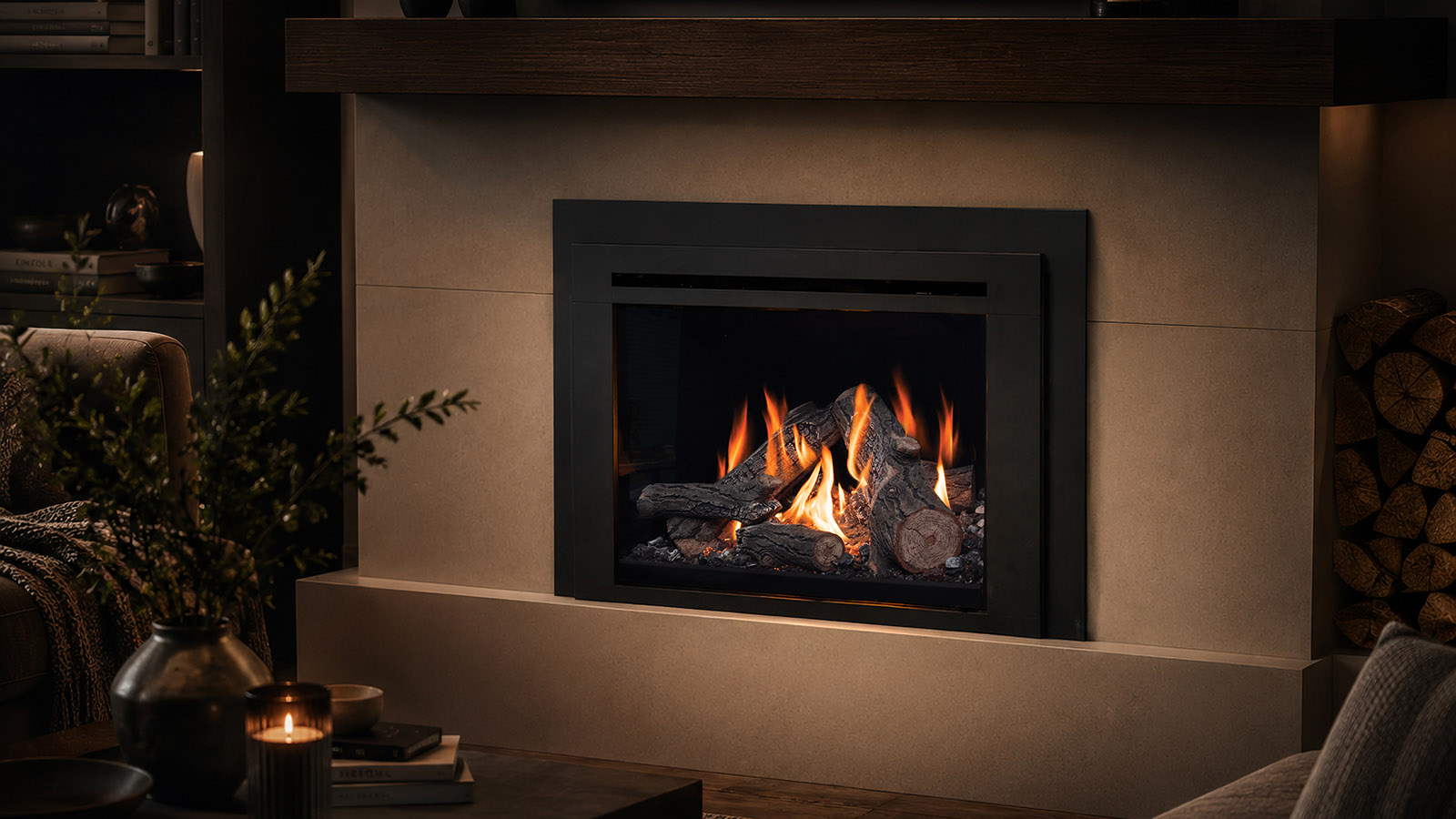

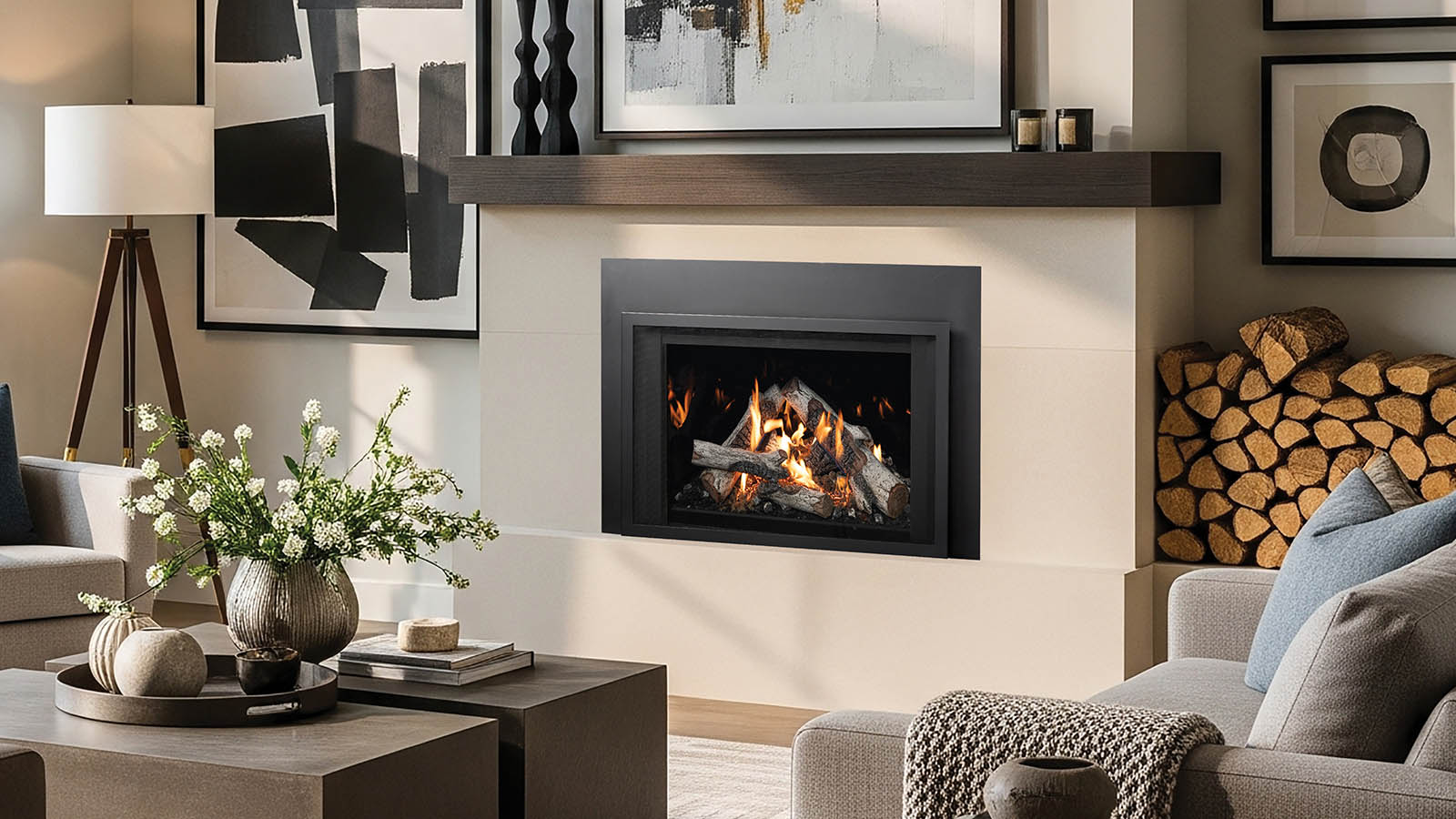

Cozy modern living room with a fireplace, abstract art, and a stack of firewood nearby. Fireplace with glowing logs burning in a modern stone surround, flanked by a living room with plants and a candle on a nearby table

658 Deluxe Live Fire™

DESIGNER FACES & TRIMSWHAT'S THE MAGIC

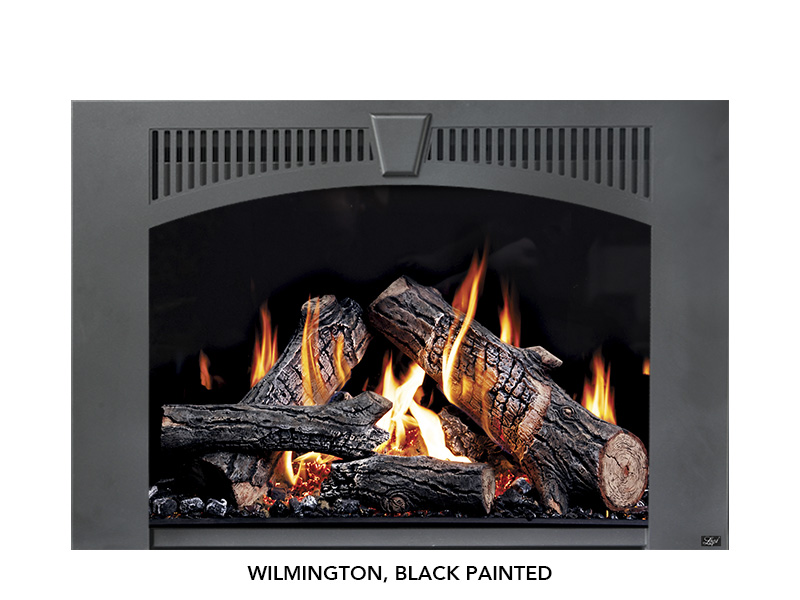

Black-painted fireplace insert with glowing flames and stacked logs inside the firebox

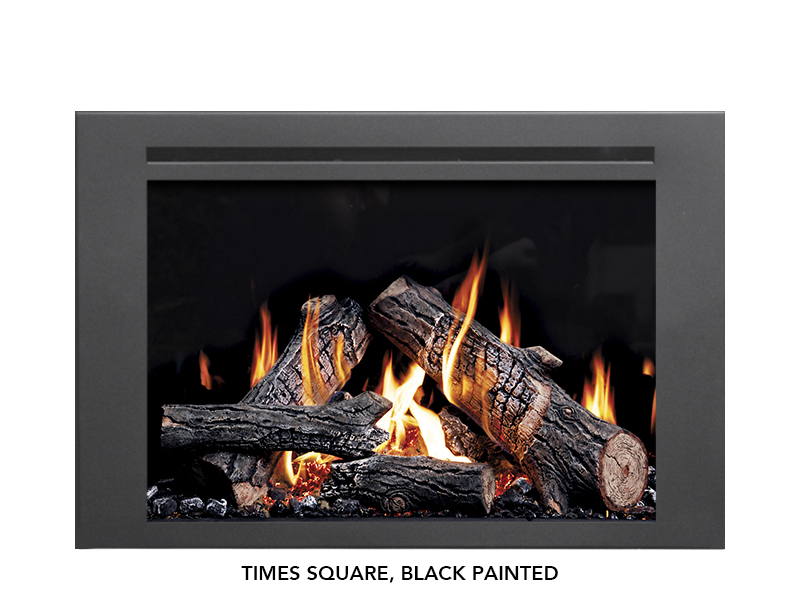

Black-painted fireplace insert with glowing logs and bright flames inside. The frame is dark gray and rectangular, enclosing a realistic wood fire.

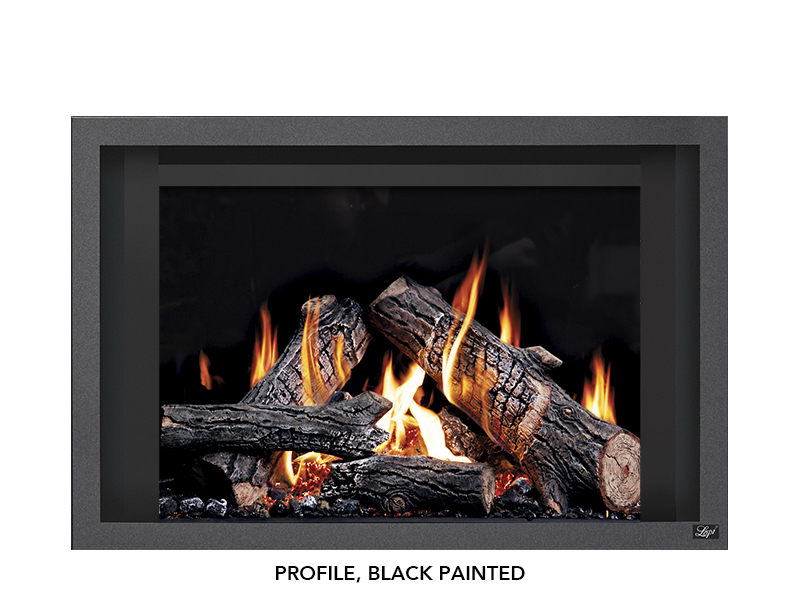

Black-painted fireplace insert with burning logs and bright orange flames in a dark surround.

658 Deluxe Live Fire™

WHAT’S THE MAGIC

Experience a more captivating fire with the 658 Live Fire™ Deluxe Gas Insert, featuring exclusive Live Fire™ flame-wrapped log technology for a remarkably realistic presentation. With 40 square inches more viewing area than the 616 Gas Insert and an installation width that’s one inch narrower, the 658 delivers a bigger, bolder fire while fitting into more fireplaces. Flush face options complete the clean, built-in look.

Button labeled'Customize this fire'—takes you to Firebuilder.

WATCH A VIDEO ON THIS INSERT

658 Deluxe Live Fire Gas Insert from Travis Industries on Vimeo.

Categories: ,
LOG SET OPTIONS

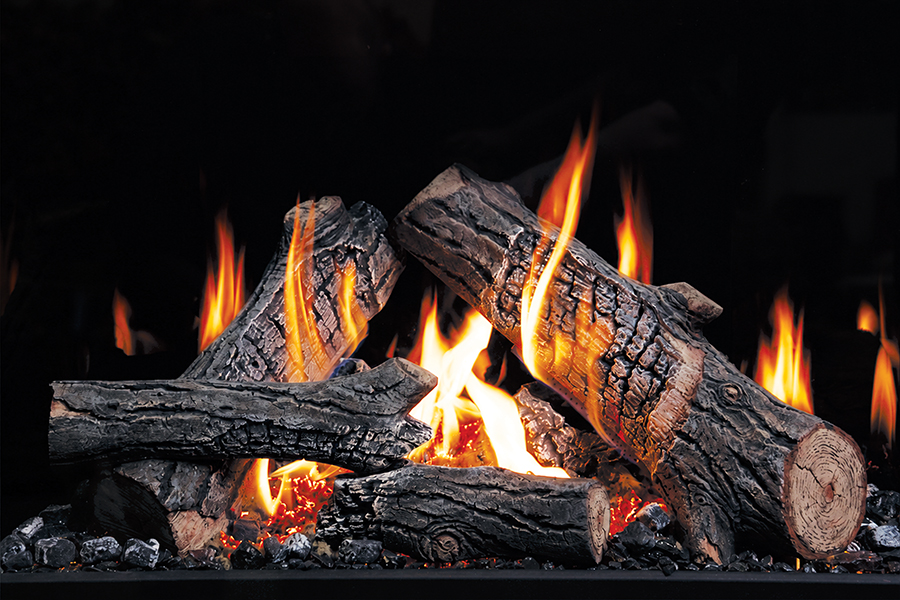

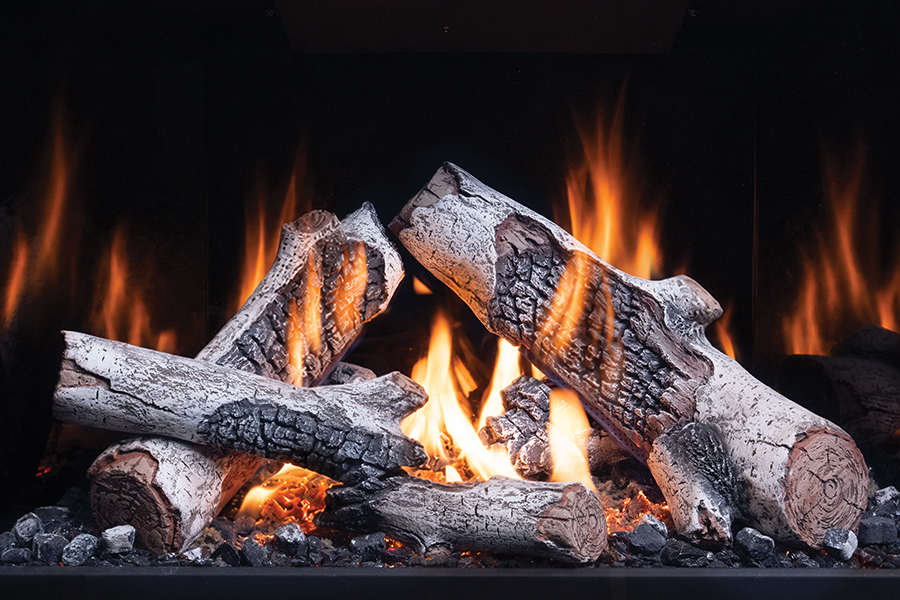

Fir Log Set Birch Log Set Fireplace with burning logs and bright orange flames against a dark background, creating a cozy indoor scene. A cozy fireplace with burning logs and glowing embers.
INNOVATIONS

GREENSMART™ REMOTE OPERATION VIDEO
EMBER-GLO™
GREENSMART™
EFFICIENCY

  • Heating Capacity: Up to 2,000 Square Feet
  • Maximum BTU/HR Input: 39,000 (NG), 37,500 (LP)
  • Minimum BTU/HR Input: 17,000 (NG) 13,500 (LP)
  • Steady State Efficiency (High): Up to 85.79% (NG), 83.43% (LP)
  • AFUE: 75.2% (NG), 77.4% (LP)
  • P4 Canadian Efficiency: 72.88% (NG), 71.10% (LP)
  • Dimensions: 23-3/4” H, 33-1/4” W (Front), 17-1/8” D,
  • Glass Viewing Area: Ceramic Glass, 581 Sq. In.

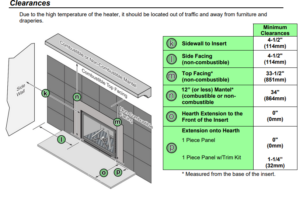

Diagram showing required clearances for a fireplace insert, with labeled points for side wall, side facing, top facing, mantel, and hearth extensions.

#image_title

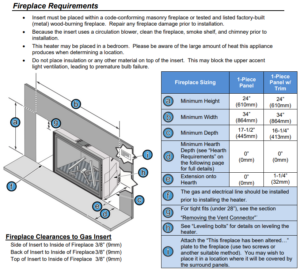

Technical diagram of fireplace clearances to a gas insert, with labeled parts a–i, showing the hearth, surrounding panels, walls, and a blue table of minimum dimensions (height, width, depth, hearth extension).

#image_title

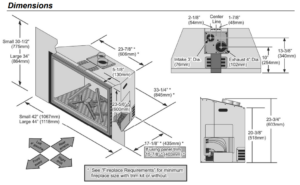

Technical dimension diagram for a fireplace insert showing front, side, and top views with overall dimensions, opening sizes, vent connections (3-inch intake, 4-inch exhaust), and notes about minimum fireplace size and trim kit.

#image_title
